Description

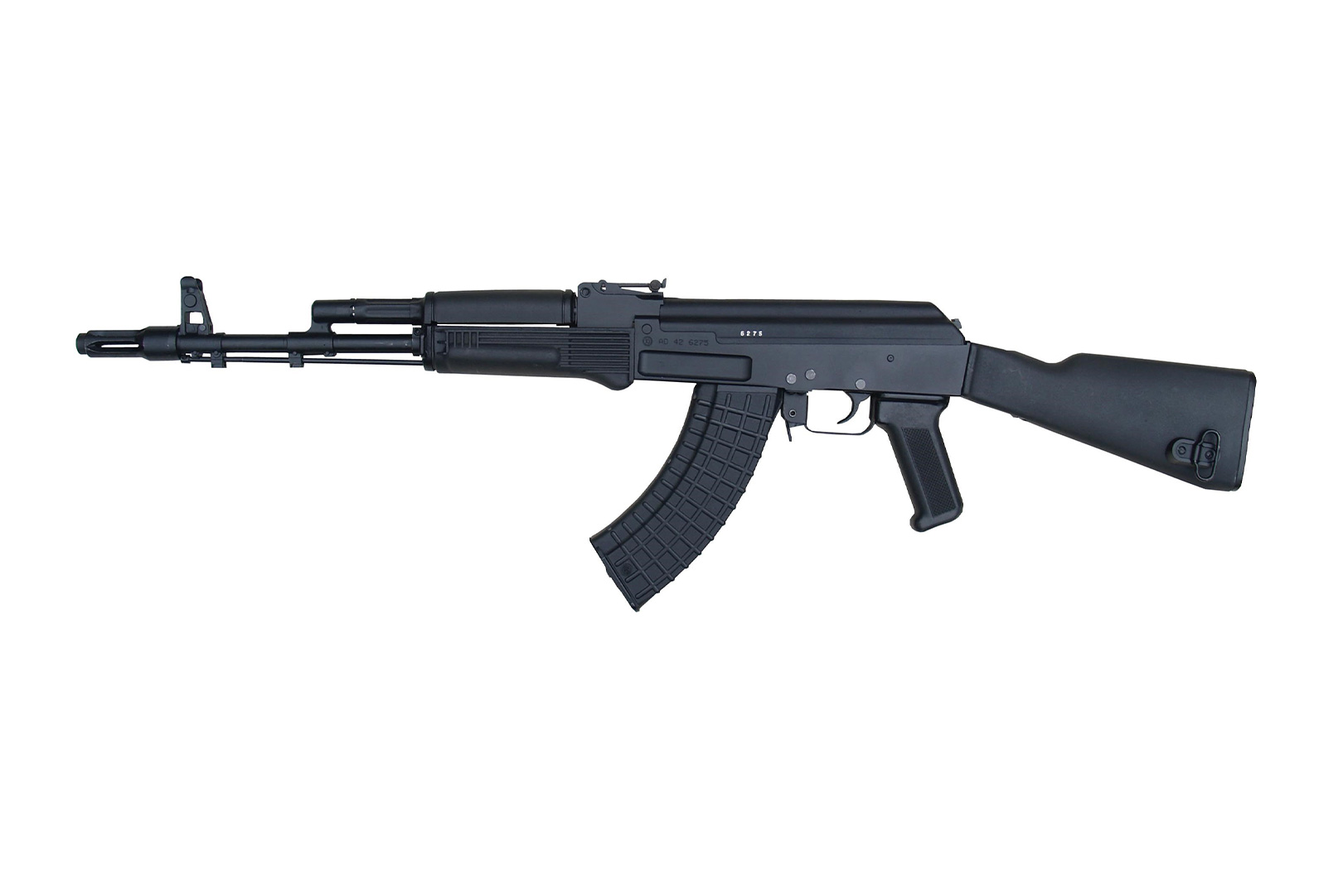

5.56×45 & 7.62×39 mm ARSENAL Assault Rifles AR-M1 (16.3” barrel)
5.56×45 mm AR-M1 NSN: 1005-50-000-0100
7.62×39 mm AR-M1 NSN: 1005-50-000-1048
The 5.56×45 mm and 7.62×39 mm AR-M1 models are highly effective, milled receiver, select fire weapons with a standard fixed stock. The 4-port flash hider (AKA eggbeater) is the extremely effective and standard flash hider offering for the Bulgarian military. An excellent choice for ground or mobile elements for use in any type of environment.
Main Features:
- Milled receiver, made from hot die forged solid blank followed by milling operations.
- Chrome lined, cold hammer forged barrel providing an extremely durable and long lasting barrel that also allows for use of corrosive and surplus ammunition if needed
- Circle 10 magazines – the best, strongest, and most reliable AK magazine available
- Lower hand guard, Upper hand guard, Butt, and Pistol grip, made from glass fiber reinforced polycaproamide.
- The butt – fixed stock, polymer with trap door for cleaning kit.
Extras (Paid Separately):
- Tritium Self-illuminated Night Sight (3-dot sight system);
- 62×39 models – black polymer magazines for 10 and 40 cartridges;
- 56×45 models – 20 round magazines optional
- Magazine packages (multiple mags per rifle – can be customized);
- Front Sight Elevation tool 1:10;
- set for magazines coupling;
- Muzzle device (compensator, flash hider, muzzle brake);
- blank fire attachment (BFA);
- rail for attaching optic mounts;
- rail mount for optics (model specific SM-13/SM-22);
- Bayonet;
- Railed handguards for accessory attachments (forward grip, flashlights, QD sling, etc.);
- QD Package – allows use of QD ports and attachments for modern QD slings;
- Repair Kit packages available
The Assault Rifle design allows the attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL or GP-25 KASTYOR Underbarrel Grenade Launchers, and firing with them.
| SPECIFICATIONS | AR-M1 | AR-M1 |
| Calibre, mm | 5.56 | 7.62 |
| Cartridge, mm | 5.56×45 | 7.62×39 |
| Fire mode | single and automatic | single and automatic |
| Rate of fire, rounds/min | 600 | 600 |
| Practical rate, rounds/min | ||
| – automatic fire | up to 100 | up to 100 |
| – single fire | up to 40 | up to 40 |
| Muzzle velocity, m/s | 710 | |
| – bullet type M 193 | 910 | – |
| – bullet type SS 109 | 870 | – |
| Sighting range, m | up to 800 | 800 |
| Maximum firing range, m | 1350 | 1350 |
| Effective firing range, m | 500 | 400 |
| Magazine capacity, rounds | 30 | 30 |
| Barrel length, mm/in | 415 mm / 16.3 in | 415 mm / 16.3 in |
| Sight radius, mm/in | 370 mm / 14.5 in | 370 mm / 14.5 in |
| Overall length, mm/in | 940 mm / 37.0 in | 940 mm / 37.0 in |
| Weight, kg/lbs.: | ||
| – rifle without magazine | 3.65 kg / 8.04 lbs. | 3.65 kg / 8.04 lbs. |
| – loaded magazine | 0.58 kg / 1.27 lbs. | 0.72 kg / 1.58 lbs. |
| System life, rounds | 15 000 | 15 000 |
| Principle of function | gas operated | gas operated |
| ACCESSORIES | |
| Cleaning rod and Cleaning rod extension | Oil can |
| Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver) | Magazines 4 pcs. |
| 5.56×45 mm | |
| 7.62×39 mm | |
| Sling | Bag for magazines |
| PACKING | |
| Number of rifles in one wooden case | 10 |
| Case dimensions, mm /in | 1380 x 530 x 387 mm / 54.3 x 20.8 x 15.2 in |
| Weight of the wooden case, kg/lbs. | 86 kg / 189.5 lbs. |
| Volume of the wooden case, m³ | 0.27 m |
